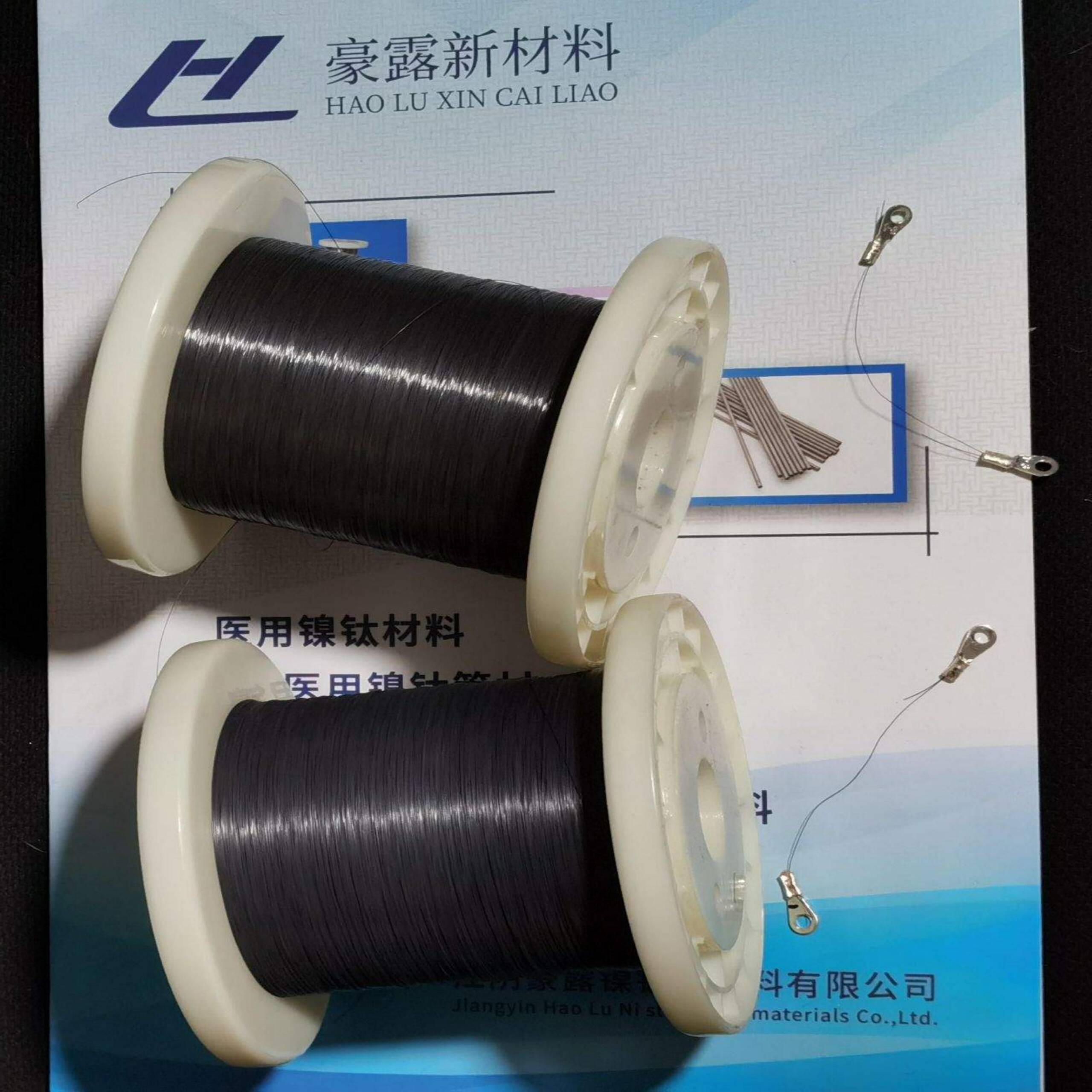

🩺 Nitinol Drive Wire (Light Oxidized State, 0.15mm)
The Superelastic Nitinol Drive Wire You Need
Our Nitinol drive wire delivers precise, bidirectional force for advanced medical and engineering applications. The Light Oxidized State Nitinol Drive Wire (0.02-2.0mm) offers seamless motion control, making it ideal for tight spaces and highly sensitive tasks.
Premium Material: Superelastic Nitinol
Crafted from medical‑grade Superelastic Nitinol, this drive wire combines strength, durability, and precision. Its unique alloy can bend and spring back reliably, thanks to its remarkable shape memory and superelastic properties. Compared to traditional steel, Nitinol handles higher strain and delivers superior performance, making it ideal for medical or micro‑mechanical applications.
Strict Quality Standards
We adhere to ASTM F2063 standards, ensuring every batch meets the highest quality and reliability. Through meticulous inspection and rigorous testing, our Nitinol drive wires offer consistent dimensions, long‑term durability, and precision performance every time.
Perfectly Sized for Precision
With an ultra‑thin (0.02-2.0mm) diameter, this Nitinol drive wire excels in micro‑scale spaces. We also offer a range of sizes from 0.10mm to 0.50mm, and custom diameters upon request. Its compact design allows for precise movements and minimal intrusion in medical or engineering setups.
Benefits of the Light Oxidized Surface
The wire’s light gold‑bronze oxide coating provides:
-
Better lubricity for smooth sliding
-
Reduced friction within tubes and sheaths
-
Resistance to surface wear
-
Clear visual identification
Bidirectional Drive Power
No matter pushed or pulled, the drive wire delivers force reliably. Its flexible design supports smooth twisting, bending, and rotation, ensuring kink-free performance in applications that demand precise bidirectional movement.
Common Applications
-
Medical Devices: Steerable catheters, guidewires, endoscopic tools, micro‑delivery systems, surgical robot arms
-
Precision Instruments: Watch mechanisms, aerospace sensors, optical alignment tools, micro‑positioning platforms
-
Electronics: Switch actuators, camera focus motors, wearable electronics, connector assemblies
Why Choose Nitinol for Your Projects?
Nitinol’s shape memory and superelasticity solve many engineering challenges:
-
Compact: Enables thinner, lighter device designs
-
Quiet: Operates with virtually no sound
-
Strong: Provides high force despite its small size
-
Biocompatible: Safe for medical applications
-
Long‑Lasting: Endures millions of flexing and movement cycles
Get the Best Nitinol Wire Today
Trust our Light Oxidized State Nitinol Bidirectional Drive Wire (0.15mm) for precision, durability, and reliability. Perfect for medical, aerospace, and micro‑mechanical fields, this wire delivers consistent quality every time.
•Diameter & Tolerance
Diameter(mm) |
Tolerance(mm) |
Diameter(mm) |
Tolerance(mm) |
Diameter(mm) |
Tolerance(mm) |
4.000-2.000 |
±0.025 |
0.350-0.260 |
±0.010 |
0.08-0.050 |
±0.005 |
2.000-1.000 |
±0.020 |
0.260-0.150 |
±0.007 |
0.050-0.025 |
±0.005 |
1.000-0.350 |
±0.010 |
0.150-0.080 |
±0.005 |
0.025-0.018 |
±0.003 |
•Mechanical properties
Max force(N) |
Tensile(MPa) |
Elongation % |
Upper stress(MPa) |
Residual strain(WT%) |
At temp |
Base on diam |
≥1000 (1350) |
≥10 (15) |
≥400 (460) |
<0.5 55.96 |
(10±10) |
Base on diam |
≥1000 (1350) |
≥10 (15) |
≥400 (460) |
<0.5 56.1 |
(-30±10) |
Base on diam |
≥1000 (1350) |
≥10 (15) |
≥400 (460) |
<0.5 50.0 |
(60±10) |
